Vertical Machining Center (Box guideway)

Super Tornado

HCMC-1370

Velocity / Smooth

Intelligent, Specialized in heavy duty cutting

Optimum stability & High rigidity of 3-axes box guideway model

One & only :


0
1
2
3
4
5
6
7
8
9

0
1
2
3
4
5
6
7
8
9

Hartrol Premium

One of Major 6 Brands of Self-Made NC Controllers Taiwan One and Only Hartrol Premium Controller


0
1
2
3
4
5
6
7
8
9

0
1
2
3
4
5
6
7
8
9

0
1
2
3
4
5
6
7
8
9

0
1
2
3
4
5
6
7
8
9
%

AI Technology

AI intelligent technology Automatic tuning parameter maintains accuracy


0
1
2
3
4
5
6
7
8
9

0
1
2
3
4
5
6
7
8
9

0
1
2
3
4
5
6
7
8
9

0
1
2
3
4
5
6
7
8
9
%

Air Suspension

For box guideway model, 50% Quadrant Error reduced and 30% reduction in backlash error


0
1
2
3
4
5
6
7
8
9

0
1
2
3
4
5
6
7
8
9

0
1
2
3
4
5
6
7
8
9

0
1
2
3
4
5
6
7
8
9
%

Design of one-piece column extended span

25% wider width, 15% rigidity increased


0
1
2
3
4
5
6
7
8
9

0
1
2
3
4
5
6
7
8
9

0
1
2
3
4
5
6
7
8
9

0
1
2
3
4
5
6
7
8
9
%

SSCT (Super Speed Cycle Time)

15% ~ 20% machining efficiency better than peers.


0
1
2
3
4
5
6
7
8
9

0
1
2
3
4
5
6
7
8
9

0
1
2
3
4
5
6
7
8
9

0
1
2
3
4
5
6
7
8
9
%

Full stroke support of saddle

30% accuracy better than peers with full stroke support of saddle design, which ensures structure stability and durability

Hartrol Premium

Mechanism Design

Specifications

Related models

Hartrol Premium

Continuously surpass the limits of machines through AI technology

The application of AI technology makes the accuracy not affected by environmental factors, so that it can achieve high-precision machining under the room temperature and the machining efficiency is not affected by the weight of the workpiece and tool wear, as long as it is equipped with Apps developed by Hartford

CCD MONITOR ( IP CAMERA )

Alarm report

Smart Lubrication System

Tool database

AFC - Automatic Feed Control ( Without Hardware )

Environment thermal displacement compensation.

CCD MONITOR(IP CAMERA)

Monitoring the live view inside the machine through IP CAMERA

Alarm report

Safety operation and enhance machine’s utilization

Smart Lubrication System

Does not affect the cutting accuracy and machine life, but can help you save fuel, up to 50%

Tool database

Short the time to select tool and improve the cutting efficiency

AFC - Automatic Feed Control(Without Hardware)

23% efficiency increased on Heavy cutting and save cost of tooling

Environment thermal displacement compensation

Reduce machining error of workpiece affected by Environment thermal issue

One & Only

Mechanism Design

test

High rigidity & One-piece design for spindle housing and casting iron

Optimum structural stability with Air Suspension & High-precision spindle

Enhance cutting accuracy, heavy cutting efficiency and extend life of guideway

1. Self-made Gear head, deflection within average 9μm. (300L)

2. Reduce Environment thermal issue during machining, ensure thermal displacement within 15 μm while temperature difference within 8℃

3. Air Suspension function make 50% Quadrant Error reduced and 30% reduction in backlash error

4. High rigidity & One-piece design for spindle housing and casting iron, spindle thermal is within 9.5℃


test

Guarantee Full support throughout the X axis travel

test

Brand new design to widen the support points on the base

test

Higher rigid column

test

Z-axis counterweight designed for best dynamic accuracy

Full support throughout the X axis travel

Brand new structure design, provide you high rigidity of box guideway model

1. Guarantee Full support throughout the X axis travel

2. Brand new design to widen the support points on the base

3. One-piece design for spindle housing and casting iron

4. Delivering a much more rigid and stable platform for heavy machining

5. Z-axis counterweight designed for best dynamic accuracy

6. Increase 35% guideway spacing on X axis, eliminating with overhand, especially on heavier work piece



test

test

Performance at the same level as Japanese machines

test

Face milling

test

Side milling

test

Tapping

test

Drilling

1. Decades of machine tool manufacturing technology, plus new developed AI technology, makes the machining accuracy/efficiency/finish almost equal to the level of Japanese machines

2. “Super Speed Cycle time” makes cutting efficiency 15% ~ 20% higher than Taiwanese peers


．Model：HCMC-1370

．Spindle：6,000 rpm gear head #50, 26kw

．Material：S45C


Inspection standard reaches the pursuit of perfection

It is guaranteed, the quality of each machine is almost zero defect

Inspection standard reaches the pursuit of perfection

test

test

test

test

We guaranteed, the quality of each machine is almost zero defect

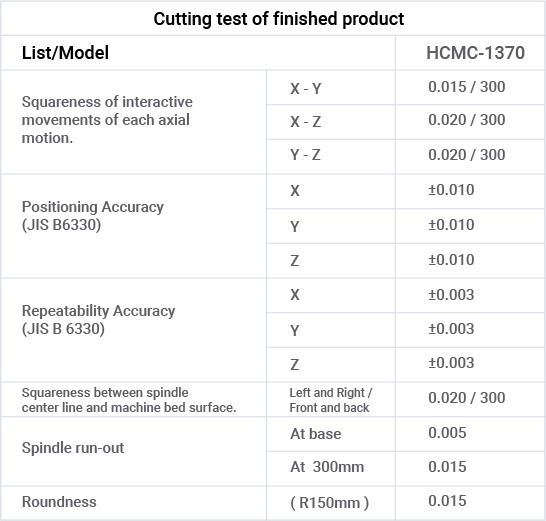

Tolerance of 3D contouring accuracy conforms to the standard:

Result of 114 spots test is approved within tolerance (± 0.02mm).


OMV (On Machine Verification): 3D Inspection is directly employed based on OMV system, which ensures each workpiece is qualified, and efficiency is enhanced to reduce time on workpiece upload/load on the table.


Demonstrate the ultimate cutting efficiency and fantastic accuracy & smoothness of mold

test

test

test

Learn more about

Specifications

Worktable

Worktable size

1450 x 700

mm

Max. load (Average)

1500

kg

Travel

X axis travel

1300

mm

Y axis travel

700

mm

Z axis travel

660

mm

Spindle

Spindle nose taper

#50

Spindle speed (Gear head)

4000 / 6000 / 8000

rpm

Spindle speed (DDS)

10000 / 12000

rpm

ATC

Capacity

A24 (30 / 32 / 40)

pcs

Tool shank

BT50 ( BBT / CAT / DIN69871 )

Motor

Spindle drive motor (Cont. / 30min)

7.5 / 11 opt. 15 / 18.5 ; 22 / 26

kW

Related models

HCMC-1100

Box guideway

HCMC-1365

Box guideway

HCMC-1682

Box guideway

HCMC-2082

Box guideway

HCMC-2110

Box guideway

PRO -1000

Box guideway
