5 sided Double Column Machining Center (Linear guideway)

ALL NEW INFINITY

HSA-327EAY

Velocity / Smooth

Intelligent, High-efficiency & Excellent precision

More comprehensive functions provide you perfect solutions

One & only :


0
1
2
3
4
5
6
7
8
9

0
1
2
3
4
5
6
7
8
9

Hartrol Premium

One of Major 6 Brands of Self-Made NC Controllers Taiwan One and Only Hartrol Premium Controller


0
1
2
3
4
5
6
7
8
9

0
1
2
3
4
5
6
7
8
9

0
1
2
3
4
5
6
7
8
9

0
1
2
3
4
5
6
7
8
9
%

AI Technology

AI intelligent technology Automatic tuning parameter maintains accuracy


0
1
2
3
4
5
6
7
8
9

0
1
2
3
4
5
6
7
8
9

0
1
2
3
4
5
6
7
8
9

0
1
2
3
4
5
6
7
8
9
%

Angular head four pull bolt design

Angular head four pull bolt design, 33% higher anti-cutting torque than the peers


0
1
2
3
4
5
6
7
8
9

0
1
2
3
4
5
6
7
8
9

0
1
2
3
4
5
6
7
8
9

0
1
2
3
4
5
6
7
8
9
%

Z axis four linear guideways

30% higher load capacity than two linear guideways of peers


0
1
2
3
4
5
6
7
8
9

0
1
2
3
4
5
6
7
8
9

Automatic head changing speed

Automatic head changing speed, leading the peers


0
1
2
3
4
5
6
7
8
9

0
1
2
3
4
5
6
7
8
9

0
1
2
3
4
5
6
7
8
9

0
1
2
3
4
5
6
7
8
9
%

Slant beam of optimum streamlined design

Structure rigidity enhances beam rigidity, and cutting vibration is reduced, which is 30 % rigidity better than peers

Hartrol Premium

Mechanism Design

Specifications

Related models

Hartrol Premium

Continuously surpass the limits of machines through AI technology

The application of AI technology makes the accuracy not affected by environmental factors, so that it can achieve high-precision machining under the room temperature and the machining efficiency is not affected by the weight of the workpiece and tool wear, as long as it is equipped with Apps developed by Hartford.

CCD MONITOR(IP CAMERA)

Monitoring the live view inside the machine through IP CAMERA

Remote Operation via Mobile Phone

Activate the mobile application feature to immediately access various information about the machine.

AI chip conveyor

Save power consumption of chip conveyor motor, also remove mass chips according to the spindle current

Tool database

Short the time to select tool and improve the cutting efficiency

ECO MODE

Turn on ECO mode, the oil cooler will turn off when idle, helping to save energy by 40%

LSN - Load setting Navi

One Button Tuning, it can eliminate vibration and improve machining accuracy

One & Only

Mechanism Design

test

Z axis four linear guideways

test

Automatic universal head

test

Automatic angular head switching compartment

test

Hartford made gear type 8000 RPM

HSA 5 Faced Series = High Rigidity + High Precision

Fantastic performance for various machining application

1. Z-axis four linear guideways three binding structure patented technology, two-way support provides 20% rigidity while cutting, bring you excellent performance.

2. Multiple choice of spindle , ex. DDS, gear head 8000 rpm

3. Self-made spindle, deflection within 5μm.

4. Complete angular head design package to satisfy comprehensive machining requirements.

5. Automatic angular head switching head compartment, to provide high efficient versatile processing.

test

Slant beam design

30% Structure Rigidity Enhanced

Optimized structure design can enhance cutting stability and dynamic precision

1.The new slant beam design, effectively reduces vibration, enhance accuracy and surface sheet cleanliness during cutting.

2. Extra-large columns, the joint width between bottom of the column and the base increased to 1,250 mm, effectively reduce overall vibration from cutting.


High Speed: Servo Drive and Counterweight Design

test

3-axes direct drive

test

Z axis nitrogen counterweight

test

Ballscrew support mechanism

3-axes direct drive servo motor enhance efficiency and precision, Z axis nitrogen counterweight system provides cutting stability

1. 3-axes direct drive servo motor: effectively reducing the transmission backlash by more than 30%.

2. Z axis nitrogen counterweight design: reduce the operating noise of the hydraulic tank, reduce the oil temperature by 50%, and effectively save energy by more than 20%.

3. With Ballscrew support, it can improve screw dead weight sagging and enhance the positioning accuracy & life of screw.

X axis Ballscrew support, it is standard configuration for model above 5 meters and below 4 meters is optional configuration.

Y axis Ballscrew support, it is standard configuration for x28 EAY /x32 EAY /x36 EA/EAY series.




test

Performance at the same level as Japanese machines

test

Face milling

test

End milling

test

Tapping

test

Drilling

1. Decades of machine tool manufacturing technology, plus new developed AI technology, makes the machining accuracy/efficiency/finish almost equal to the level of Japanese machines

2. “Super Speed Cycle time” makes cutting efficiency 15% ~ 50% higher than Taiwanese peers


.Model:HSA-327 EAY

.Spindle:6,000 rpm gear head, 26kw

.Material:S45C

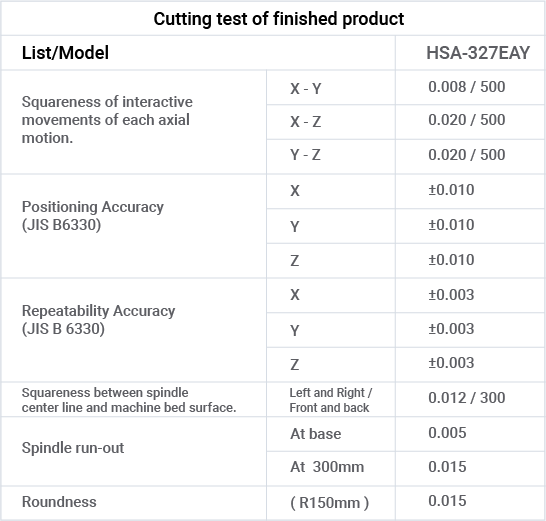

Inspection standard reaches the pursuit of perfection

test

test

test

We guaranteed, the quality of each machine is almost zero defect

Tolerance of 3D contouring accuracy conforms to the standard:

Result of 114 spots test is approved within tolerance (± 0.02mm).


OMV (On Machine Verification): 3D Inspection is directly employed based on OMV system, which ensures each workpiece is qualified, and efficiency is enhanced to reduce time on workpiece upload/load on the table.

Demonstrate the ultimate cutting efficiency and fantastic accuracy & smoothness of mold

test

test

test

Specifications

Worktable

Worktable size

3000 x 2200

mm

Max. load (Average)

10000

kg

T-slot Width x pitch (number)

22 x 250 (11)

mm

Travel

X axis travel

3000

mm

Y axis travel

3500

mm

Z axis travel

1000 ( 1200 )

mm

Spindle

Spindle nose taper

#50

Spindle speed (Gear head)

6000 ( 8000 )

rpm

Spindle speed (Hybrid Built-in)

10000

rpm

ATC

Capacity

A: 32 ( 40 / 60 )

pcs

Tool shank

BT-50 ( CAT-50 / DIN-50 / BBT-50 )

Motor

Spindle drive motor (Cont. / 30min)

18.5 / 22 opt. 30 / 35

kw
