Vertical Machining Center (Linear guide way)

F1

LG-500

Highly-efficient AI Vertical Machining Center

With 15-50% higher efficiency than peers

One & only :


0
1
2
3
4
5
6
7
8
9

0
1
2
3
4
5
6
7
8
9

Hartrol Premium

One of major 6 brands of self-made NC controllers Taiwan one and only Hartrol Premium controller


0
1
2
3
4
5
6
7
8
9

0
1
2
3
4
5
6
7
8
9

0
1
2
3
4
5
6
7
8
9

0
1
2
3
4
5
6
7
8
9
%

AI Technology

AI intelligent technology automatic tuning parameter maintains accuracy


0
1
2
3
4
5
6
7
8
9

0
1
2
3
4
5
6
7
8
9
.

0
1
2
3
4
5
6
7
8
9

0
1
2
3
4
5
6
7
8
9

0
1
2
3
4
5
6
7
8
9

0
1
2
3
4
5
6
7
8
9
Secs

AIS Quick Tool Change

Within 1.18 secs


0
1
2
3
4
5
6
7
8
9

0
1
2
3
4
5
6
7
8
9

0
1
2
3
4
5
6
7
8
9

0
1
2
3
4
5
6
7
8
9
%

BBT Dual Contact Spindle

30% rigidity raise per spindle BBT double contact, which is 30 % better than general spindles


0
1
2
3
4
5
6
7
8
9

0
1
2
3
4
5
6
7
8
9

0
1
2
3
4
5
6
7
8
9

0
1
2
3
4
5
6
7
8
9
%

SSCT (Super Speed Cycle Time)

Machining efficiency 30% better than peers


0
1
2
3
4
5
6
7
8
9

0
1
2
3
4
5
6
7
8
9

0
1
2
3
4
5
6
7
8
9

0
1
2
3
4
5
6
7
8
9
%

Columns Leaning Backwards Design

Y-axis rigidity and vibtation resistance increase thanks to design of columns leaning backwards and forward center of gravity

Hartrol Premium

Mechanism Design

Specifications

Hartrol Premium

Continuously surpass the limits of machine through AI technology

Accuracy is not affected by environmental factors due to AI Tech application. Efficiency of machining is enhanced as factory ambient temperature remains constantly, and not affected by workpiece weight and the wear of tools. Thanks to automatic operation function, which it is similar to autopilot of Tesla.

CCD MONITOR ( IP CAMERA )

Alarm Report System

AI Lubrication

Tool Database

AFC - Automatic Feed Control (Without Hardware)

Workpiece Counting

CCD MONITOR (IP CAMERA)

Monitoring the live view inside the machine through IP CAMERA

Alarm Report System

You won't miss the start and end time of alarm message and machining complection

AI Lubrication

Save your cost up to 50%. Oil lubrication depends on your machining status

Tool Database

With this function, tool finding time is reduced and machining efficiency is increased

AFC - Automatic Feed Control (Without Hardware)

23% efficiency increased on Heavy cutting and save cost of tooling

Workpiece Counting

Calculate the number and completion rate of finished products

One & Only

Mechanism Design

test

High quality self-made spindle

test

BBT Dual contact spindle

Spindles Manufactured by Hartford Offer Qaulity Assurance

Run-out within 5μm

1. High quality self-made spindle to ensure spindle run-out within 5μm.

2. Dual contact between the taper and the flange can enhance rigidity up to 30%. Radial deflection, vibration and deviation are significantly reduced.

Stability_Optimized Structure Design to Enhance Rigidity up to 30%

test

LG 一體成型底座設計

test

大跨距設計

test

高精密度線性滑軌

Improving cutting stability and dynamic precision

1. One-piece bed design

2. Oversize column design: Increased width of interface between the column and the base to enhance stability.

3. High accuracy linear guide way design: Maximum rapid traverse rate of 30,000 mm / min.


3-axis Direct Transmission and Exellent Tool Change Time

test

三軸直結式傳動設計

test

快速換刀

Direct Transmission boosts machining efficiency and reliability ; Quick tool changing maximizes production capacity

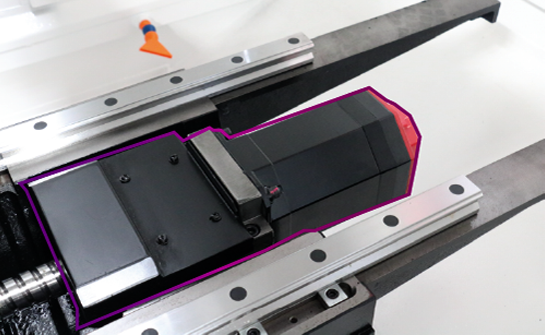

1. Direct Transmission between servo motor and ballscrew：High torque servo motors are directly coupled with ballscrews, which can get rid of the backlash or servo lag caused by a belt.

2. Excellent tool change time：minimum 1.38 sec (tool-to-tool)

The Same Level of Performance as Japanese Machines

test

Drilling

test

Face milling

test

End milling

test

Tapping

1. Decades of machine tool manufacturing technology, plus new developed AI technology, makes the machining accuracy/efficiency/finish almost equal to the level of Japanese machines

2. “Super Speed Cycle time” makes cutting efficiency 15% ~ 50% higher than Taiwanese peers


．Model：LG-500

．Spindle：8,000 rpm pulley spindle 11kW

．Cutting material：S45C

Inspection standard reaches the pursuit of perfection.

It is guaranteed, the quality of each machine is almost zero defect

Persuasive Inspection Standard

test

test

test

test

We guaranteed, the quality of each machine is almost zero defect.

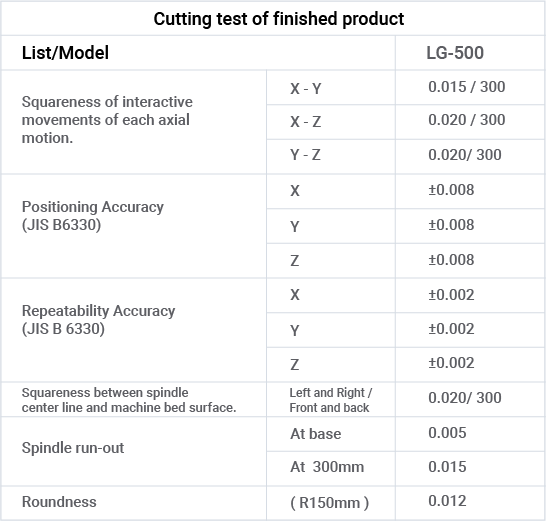

Tolerance of 3D contouring accuracy conforms to the standard:

Result of 114 spots test is approved within tolerance (± 0.02mm).


OMV (On Machine Verification): 3D Inspection is directly employed based on OMV system, which ensures each workpiece is qualified, and efficiency is enhanced to reduce time on workpiece upload/load on the table.

test

Specifications

Worktable

Worktable size

620 x 420

mm

Max. load (Average)

300

kg

T slot Width x Pitch

18 x 130 (3)

mm

Travel

X axis travel

520

mm

Y axis travel

420

mm

Z axis travel

450

mm

Spindle

Spindle nose taper

#40

Spindle speed (Pulley)

8000 / 10000 / 12000

rpm

Spindle speed (DDS)

10000 / 12000 / 15000

rpm

ATC

Capacity

A:24

pcs

Tool shank

BT40 ( BBT / CAT / DIN )

Spindle motor

Spindle drive motor (Cont. / 30 min)

5.5 / 7.5

kw
