Gantry type 5-faced machining center

Aero

Aero-8046G

Gantry type 5-faced machining center

Solid support for rigid machining

Extreme rigidity and stability design

One & only :


0
1
2
3
4
5
6
7
8
9

0
1
2
3
4
5
6
7
8
9

Hartrol Premium

One of major 6 brands of self-made NC controllers Taiwan one and only Hartrol Premium controller


0
1
2
3
4
5
6
7
8
9

0
1
2
3
4
5
6
7
8
9

0
1
2
3
4
5
6
7
8
9

0
1
2
3
4
5
6
7
8
9
%

AI Technology

AI intelligent technology automatic tuning parameter maintains accuracy


0
1
2
3
4
5
6
7
8
9

0
1
2
3
4
5
6
7
8
9

0
1
2
3
4
5
6
7
8
9

0
1
2
3
4
5
6
7
8
9
%

Z-axis four linear guideways

Increase by 30% in load capacity compared with peers with 2 linear guideways


0
1
2
3
4
5
6
7
8
9

0
1
2
3
4
5
6
7
8
9

0
1
2
3
4
5
6
7
8
9

0
1
2
3
4
5
6
7
8
9
%

Angular head four pull bolt design

33% higher anti-cutting torque than the peers


0
1
2
3
4
5
6
7
8
9

0
1
2
3
4
5
6
7
8
9
years

Ballscrews Support

Maintain excellent positioning accuracy


0
1
2
3
4
5
6
7
8
9

0
1
2
3
4
5
6
7
8
9
degree

Angular head technology

C-axis Indexing 1 degree

Hartrol Premium

Mechanism Design

Specifications

Related models

Hartrol Premium

Continuously surpass the limits of machine through AI technology

Accuracy is not affected by environmental factors due to AI Tech application. Efficiency of machining is enhanced as factory ambient temperature remains constantly, and not affected by workpiece weight and the wear of tools. Thanks to automatic operation function, which it is similar to autopilot of Tesla.

Remote Operation via Mobile Phone

Activate the mobile application feature to immediately access various information about the machine.

LSN - Load setting Navi

One Button Tuning, it can eliminate vibration and improve machining accuracy

CCD MONITOR ( IP CAMERA )

Monitoring the live view inside the machine through IP CAMERA

M216

Suitable for processing settings on angled heads and inclined surfaces, simplifying your processing procedures

AI Chip Conveyor

Save power consumption of chip conveyor motor, also remove mass chips according to the spindle current

AFC - Automatic Feed Control(Without Hardware)

23% efficiency increased on Heavy cutting and save cost of tooling

One & Only

Mechanism Design

test

High Efficient Spindle

Hartford Self-made i-Tech Hybrid10,000 rpm Spindle (Optional)

High speed + High torque + High Precision Processing Experience

Hartford self-made i-Tech hybrid 10,000 rpm spindle (optional)
‧Double cooling cycle design for motor and spindle
‧Cooling cycle design
• Built-in motor - maximum 35kW, 600N-m

Combining Automatic Exchange Head Cabin and Vertical and Horizontal Tool Change System

test

Auto head changing cabin and V/H tool change system

test

2 axis head

Offer efficient and versatile machining

1. Can operate with auto universal head / 90 degree head / extension head.
2. The full automatic head changer is provided with the protective cover and independent head magazine.
3. The hydraulic cylinder is used for fast head changeover.
4. Each magazine is provided with an independent moving door that is opened only during the head changeover to prevent debris from contaminating heads.
5. Additional head magazines are also available.

test

AERO - screw support mechanism

Screw Support Mechanism Maintains Excellent Positioning Accuracy

Ensure transmission power

1. Improve screw dead weight sagging ; enhance the positioning accuracy and lifespan of screw.
2. increase one level of screw specification; lift static rigidity.

test

test

test

The Same Level of Performance as Japanese Machines

test

1. Decades of machine tool manufacturing technology, plus new developed AI technology, makes the machining accuracy/efficiency/finish almost equal to the level of Japanese machines
2. “Super Speed Cycle time” makes cutting efficiency 15% ~ 50% higher than Taiwanese peers

.Model:Aero-846G
.Spindle:Gear spindle 6,000 rpm 26 kW
.Cutting material:Alumium die cast ADC12

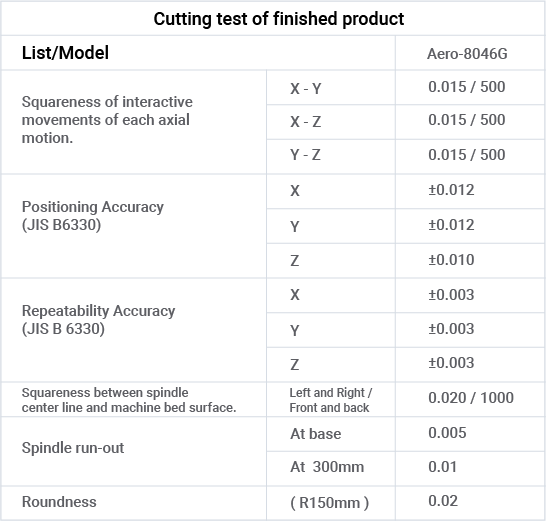

Inspection standard reaches the pursuit of perfection

test

test

test

We guaranteed, the quality of each machine is almost zero defect.

Tolerance of 3D contouring accuracy conforms to the standard:
Result of 114 spots test is approved within tolerance (± 0.02mm).

OMV (On Machine Verification): 3D Inspection is directly employed based on OMV system, which ensures each workpiece is qualified, and efficiency is enhanced to reduce time on workpiece upload/load on the table.

Demonstrate the ultimate cutting efficiency and fantastic accuracy & smoothness of mold

test

test

Specifications

Worktable

Worktable size

8000 x 4100

mm

Max. load (Average)

5000

kg / m2

Travel

X axis travel

8000

mm

Y axis travel

4600

mm

Z axis travel

1000 (1200 opt)

mm

Spindle

Spindle nose taper

#50

Spindle speed (Gear)

6000 (8000 opt)

rpm

ATC

Capacity

S type 30 (opt 40), A type 40 (opt 60)

pcs

Tool shank

BT-50 ( CAT50 / DIN69871A / BBT50 )
